Memory and Storage HW2

Memcheck (30%)

用 Valgrind 找出所有的 memory errors 之後，為了找出錯誤原因，我在終端執行了：

$ gdb -q ./memleak
(gdb) disassemble /m main

一一比對反組譯後的 instructions 和與之對應的 memory errors。

==2691530== Invalid write of size 4
==2691530==    at 0x40011C0: main (memleak.c:49)
==2691530==  Address 0x4a9e068 is 0 bytes after a block of size
  40 alloc'd
==2691530==    at 0x484E7A8: malloc (vg_replace_malloc.c:446)
==2691530==    by 0x400119E: main (memleak.c:46)

這表示程式一開始先 malloc() 了一個 40 bytes 的記憶體（合法的存取界線是第 0 byte 到第 39 byte），但卻嘗試寫入第 40 byte（0x4a9e068）。

對應的 instructions 如下，註解的部分是我認為對應的 C 程式碼：

# int* arr = malloc(10 * sizeof(int));
46	in memleak.c
   0x0000000000001195 <+12>:	mov    $0x28,%edi
   0x000000000000119a <+17>:	call   0x1090 <malloc@plt>
   0x000000000000119f <+22>:	mov    %rax,-0x18(%rbp)

# for (int i = 0; i <= 10; i++) {
47	in memleak.c
48	in memleak.c
   0x00000000000011a3 <+26>:	movl   $0x0,-0x24(%rbp)
   0x00000000000011aa <+33>:	jmp    0x11ca <main+65>
   0x00000000000011c6 <+61>:	addl   $0x1,-0x24(%rbp)
   0x00000000000011ca <+65>:	cmpl   $0xa,-0x24(%rbp)
   0x00000000000011ce <+69>:	jle    0x11ac <main+35>

#     arr[i] = 0;
# }
49	in memleak.c
   0x00000000000011ac <+35>:	mov    -0x24(%rbp),%eax
   0x00000000000011af <+38>:	cltq
   0x00000000000011b1 <+40>:	lea    0x0(,%rax,4),%rdx
   0x00000000000011b9 <+48>:	mov    -0x18(%rbp),%rax
   0x00000000000011bd <+52>:	add    %rdx,%rax
   0x00000000000011c0 <+55>:	movl   $0x0,(%rax)

發生的事情應該是迴圈變數的 < 打成 <=，導致越界存取陣列。

==2691530== Invalid read of size 4
==2691530==    at 0x40011ED: main (memleak.c:54)
==2691530==  Address 0x4a9e068 is 0 bytes after a block of size
  40 alloc'd
==2691530==    at 0x484E7A8: malloc (vg_replace_malloc.c:446)
==2691530==    by 0x400119E: main (memleak.c:46)

表示程式越界存取了 malloc() 外的記憶體，類似 Error 1。

對應的 instructions 如下，註解的部分是我認為對應的 C 程式碼：

# int var;
# for (int j = 0; j <= 10; j++) {
50	in memleak.c
51	in memleak.c
52	in memleak.c
53	in memleak.c
   0x00000000000011d0 <+71>:	movl   $0x0,-0x1c(%rbp)
   0x00000000000011d7 <+78>:	jmp    0x11f6 <main+109>
   0x00000000000011f2 <+105>:	addl   $0x1,-0x1c(%rbp)
   0x00000000000011f6 <+109>:	cmpl   $0xa,-0x1c(%rbp)
   0x00000000000011fa <+113>:	jle    0x11d9 <main+80>

#     var += arr[j];
# }
54	in memleak.c
   0x00000000000011d9 <+80>:	mov    -0x1c(%rbp),%eax
   0x00000000000011dc <+83>:	cltq
   0x00000000000011de <+85>:	lea    0x0(,%rax,4),%rdx
   0x00000000000011e6 <+93>:	mov    -0x18(%rbp),%rax
   0x00000000000011ea <+97>:	add    %rdx,%rax
   0x00000000000011ed <+100>:	mov    (%rax),%eax
   0x00000000000011ef <+102>:	add    %eax,-0x20(%rbp)

發生的事情跟 error 1 相同，應該是迴圈變數的 < 打成 <=，導致越界存取陣列。

==2691530== Use of uninitialised value of size 8
==2691530==    at 0x48E1DA2: _itoa_word (_fitoa_word.c:38)
==2691530==    by 0x48ECE8C: __printf_buffer (vfprintf-process-arg.c:155)
==2691530==    by 0x48EEFF8: __vfprintf_internal (vfprintf-internal.c:1548)
==2691530==    by 0x48E2D72: printf (printf.c:33)
==2691530==    by 0x4001214: main (memleak.c:57)

對應的 instructions：

55	in memleak.c
56	in memleak.c
57	in memleak.c
   0x00000000000011fc <+115>:	mov    -0x20(%rbp),%eax
   0x00000000000011ff <+118>:	mov    %eax,%esi
   0x0000000000001201 <+120>:	lea    0xdfc(%rip),%rax        # 0x2004
   0x0000000000001208 <+127>:	mov    %rax,%rdi
   0x000000000000120b <+130>:	mov    $0x0,%eax
   0x0000000000001210 <+135>:	call   0x1080 <printf@plt>

對應的 C 程式碼：

printf("%d", var);

但是可以發現與 var（也就是 -0x20(%rbp)）有關的指令只有：

# var += arr[j];
0x00000000000011ef <+102>:	add    %eax,-0x20(%rbp)

# printf var
0x00000000000011fc <+115>:	mov    -0x20(%rbp),%eax

var 是一個 local variable 但從來都沒有初始化，所以 Valgrind 抓到了這個問題。

==2691530== Conditional jump or move depends on uninitialised value(s)
==2691530==    at 0x48E1DA9: _itoa_word (_fitoa_word.c:38)
==2691530==    by 0x48ECE8C: __printf_buffer (vfprintf-process-arg.c:155)
==2691530==    by 0x48EEFF8: __vfprintf_internal (vfprintf-internal.c:1548)
==2691530==    by 0x48E2D72: printf (printf.c:33)
==2691530==    by 0x4001214: main (memleak.c:57)
==2691530==
...

這個錯誤的源頭跟 Error 3 一樣，算是連鎖反應，因為 printf() 底層呼叫的函式也需要經過一些 if 跟 while 之類的判斷，而只要var 這個垃圾值每經過一次 branch，Valgrind 就會抱怨一次。

## Error 5: Negative size value when calling malloc()
==2691530== Argument 'size' of function malloc has a fishy (possibly negative) value: -40
==2691530==    at 0x484E7A8: malloc (vg_replace_malloc.c:446)
==2691530==    by 0x4001220: main (memleak.c:61)
==2691530==

對應的 instructions：

61	in memleak.c
   0x0000000000001215 <+140>:	mov    $0xffffffffffffffd8,%rdi
   0x000000000000121c <+147>:	call   0x1090 <malloc@plt>
   0x0000000000001221 <+152>:	mov    %rax,-0x10(%rbp)

相當於：

int *ptr = malloc(-40);

0xffffffffffffffd8 以 signed 解讀是 $-40$，但是 malloc() 吃的 size_t 是 unsigned，如果 malloc() 真的拿這個值（大約是 16 Exabytes）去跟 OS 要記憶體，那 OS 一定會拒絕並回傳空指標，導致後續有可能 segmentation fault。

對應的 instructions：

62	in memleak.c
63	in memleak.c
   0x0000000000001225 <+156>:	mov    $0x28,%edi
   0x000000000000122a <+161>:	call   0x1090 <malloc@plt>
   0x000000000000122f <+166>:	mov    %rax,-0x8(%rbp)

64	in memleak.c
   0x0000000000001233 <+170>:	mov    -0x8(%rbp),%rax
   0x0000000000001237 <+174>:	mov    %rax,%rdi
   0x000000000000123a <+177>:	call   0x1070 <free@plt>

65	in memleak.c
   0x000000000000123f <+182>:	mov    -0x8(%rbp),%rax
   0x0000000000001243 <+186>:	mov    %rax,%rdi
   0x0000000000001246 <+189>:	call   0x1070 <free@plt>

對應的 C 程式碼：

int* ptr = malloc(40);
free(ptr);
free(ptr);

同一塊記憶體被 free 了兩次，allocator 會把這塊空間加進 free list 兩次，可能導致 heap 結構損壞（malloc() 可能回傳錯誤的指標），或是被 heap exploitation。

Cachegrind (10%)

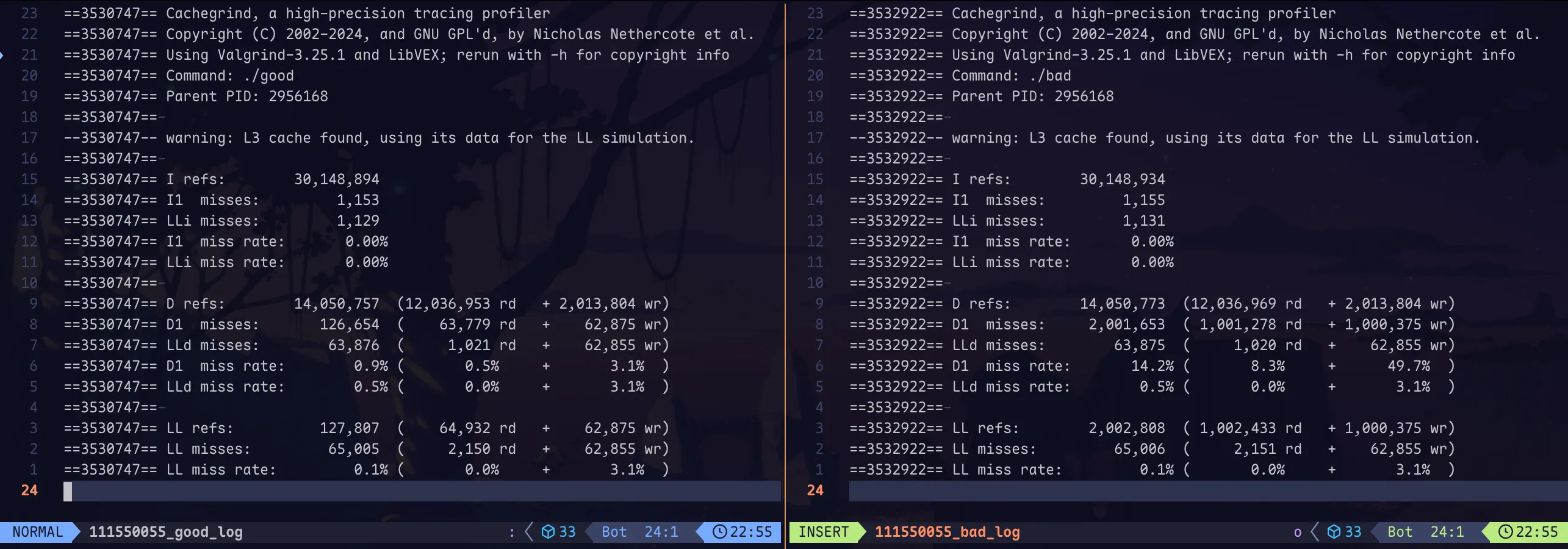

左圖為 good log，右圖為 bad log。

可以發現 ./good 的 L1 Data Cache Miss 次數為 $126,654$，然而 ./bad 的 L1 Data Cache Miss 次數為 $2,001,653$，顯著比 ./good。

於是使用 GDB 的 disassemble 功能分析了一下兩個執行檔：

# Partial dump result of main() from good.c
26	in good.c
   0x0000000000001206 <+8>:	mov    $0x0,%eax
   0x000000000000120b <+13>:	call   0x1129 <set_array_rows>
27	in good.c
   0x0000000000001210 <+18>:	mov    $0x0,%eax
   0x0000000000001215 <+23>:	call   0x1191 <sum_array_rows>

# Partial dump result of main() from bad.c
26	in bad.c
   0x0000000000001206 <+8>:	mov    $0x0,%eax
   0x000000000000120b <+13>:	call   0x1129 <set_array_cols>
27	in bad.c
   0x0000000000001210 <+18>:	mov    $0x0,%eax
   0x0000000000001215 <+23>:	call   0x1191 <sum_array_cols>

# Partial dump result of sum_array_rows()

# for (int i = 0; i <= 999; i++)
18	in good.c
19	in good.c
20	in good.c
   0x0000000000001199 <+8>:	movl   $0x0,-0x8(%rbp)
   ...
   0x00000000000011f1 <+96>:	cmpl   $0x3e7,-0x8(%rbp)
   0x00000000000011f8 <+103>:	jle    0x11a2 <sum_array_rows+17>

# for (int j = 0; j <= 999; j++)
21	in good.c
   0x00000000000011a2 <+17>:	movl   $0x0,-0x4(%rbp)
   ...
   0x00000000000011e4 <+83>:	cmpl   $0x3e7,-0x4(%rbp)
   0x00000000000011eb <+90>:	jle    0x11ab <sum_array_rows+26>

# sum += arr[i][j]
22	in good.c
   0x00000000000011ab <+26>:	mov    -0x4(%rbp),%eax
   0x00000000000011ae <+29>:	movslq %eax,%rdx
   0x00000000000011b1 <+32>:	mov    -0x8(%rbp),%eax
   0x00000000000011b4 <+35>:	cltq
   0x00000000000011b6 <+37>:	imul   $0x3e8,%rax,%rax
   0x00000000000011bd <+44>:	add    %rdx,%rax
   0x00000000000011c0 <+47>:	lea    0x0(,%rax,4),%rdx
   0x00000000000011c8 <+55>:	lea    0x2e71(%rip),%rax        # 0x4040 <arr>
   0x00000000000011cf <+62>:	mov    (%rdx,%rax,1),%edx
   0x00000000000011d2 <+65>:	mov    0x3d3768(%rip),%eax        # 0x3d4940 <sum>
   0x00000000000011d8 <+71>:	add    %edx,%eax
   0x00000000000011da <+73>:	mov    %eax,0x3d3760(%rip)        # 0x3d4940 <sum>

# Partial dump result of sum_array_cols()

# for (int i = 0; i <= 999; i++)
18	in bad.c
19	in bad.c
20	in bad.c
   0x0000000000001199 <+8>:	movl   $0x0,-0x8(%rbp)
   0x00000000000011a0 <+15>:	jmp    0x11f1 <sum_array_cols+96>
   0x00000000000011ed <+92>:	addl   $0x1,-0x8(%rbp)
   0x00000000000011f1 <+96>:	cmpl   $0x3e7,-0x8(%rbp)
   0x00000000000011f8 <+103>:	jle    0x11a2 <sum_array_cols+17>

# for (int j = 0; j <= 999; j++)
21	in bad.c
   0x00000000000011a2 <+17>:	movl   $0x0,-0x4(%rbp)
   0x00000000000011a9 <+24>:	jmp    0x11e4 <sum_array_cols+83>
   0x00000000000011e0 <+79>:	addl   $0x1,-0x4(%rbp)
   0x00000000000011e4 <+83>:	cmpl   $0x3e7,-0x4(%rbp)
   0x00000000000011eb <+90>:	jle    0x11ab <sum_array_cols+26>

# sum += arr[j][i]
22	in bad.c
   0x00000000000011ab <+26>:	mov    -0x8(%rbp),%eax
   0x00000000000011ae <+29>:	movslq %eax,%rdx
   0x00000000000011b1 <+32>:	mov    -0x4(%rbp),%eax
   0x00000000000011b4 <+35>:	cltq
   0x00000000000011b6 <+37>:	imul   $0x3e8,%rax,%rax
   0x00000000000011bd <+44>:	add    %rdx,%rax
   0x00000000000011c0 <+47>:	lea    0x0(,%rax,4),%rdx
   0x00000000000011c8 <+55>:	lea    0x2e71(%rip),%rax        # 0x4040 <arr>
   0x00000000000011cf <+62>:	mov    (%rdx,%rax,1),%edx
   0x00000000000011d2 <+65>:	mov    0x3d3768(%rip),%eax        # 0x3d4940 <sum>
   0x00000000000011d8 <+71>:	add    %edx,%eax
   0x00000000000011da <+73>:	mov    %eax,0x3d3760(%rip)        # 0x3d4940 <sum>

兩個執行檔都在做「設定 $1000 \times 1000$ int 二維陣列初始值」、「計算 $1000 \times 1000$ int 二維陣列的總和」，差異在存取方向不同。

• good 做的事情是橫向遍歷陣列。
• bad 做的事情是縱向遍歷陣列。

由於縱向遍歷就等於在記憶體空間內跳著讀元素，導致 CPU 辛苦搬進 L1 Data Cache 的資料完全用不到，造成大量的 Cache Miss。

另外還有一個證據可以佐證，將兩個執行檔的 Data Cache Miss 相除，比值接近 $16$ 倍：

而在我的機器上查看 L1 Data Cache 的大小：

一個 int 大小 $4$ bytes，所以一個 cache line 會搬 16 個 int 進 cache，正好吻合相差的倍率。

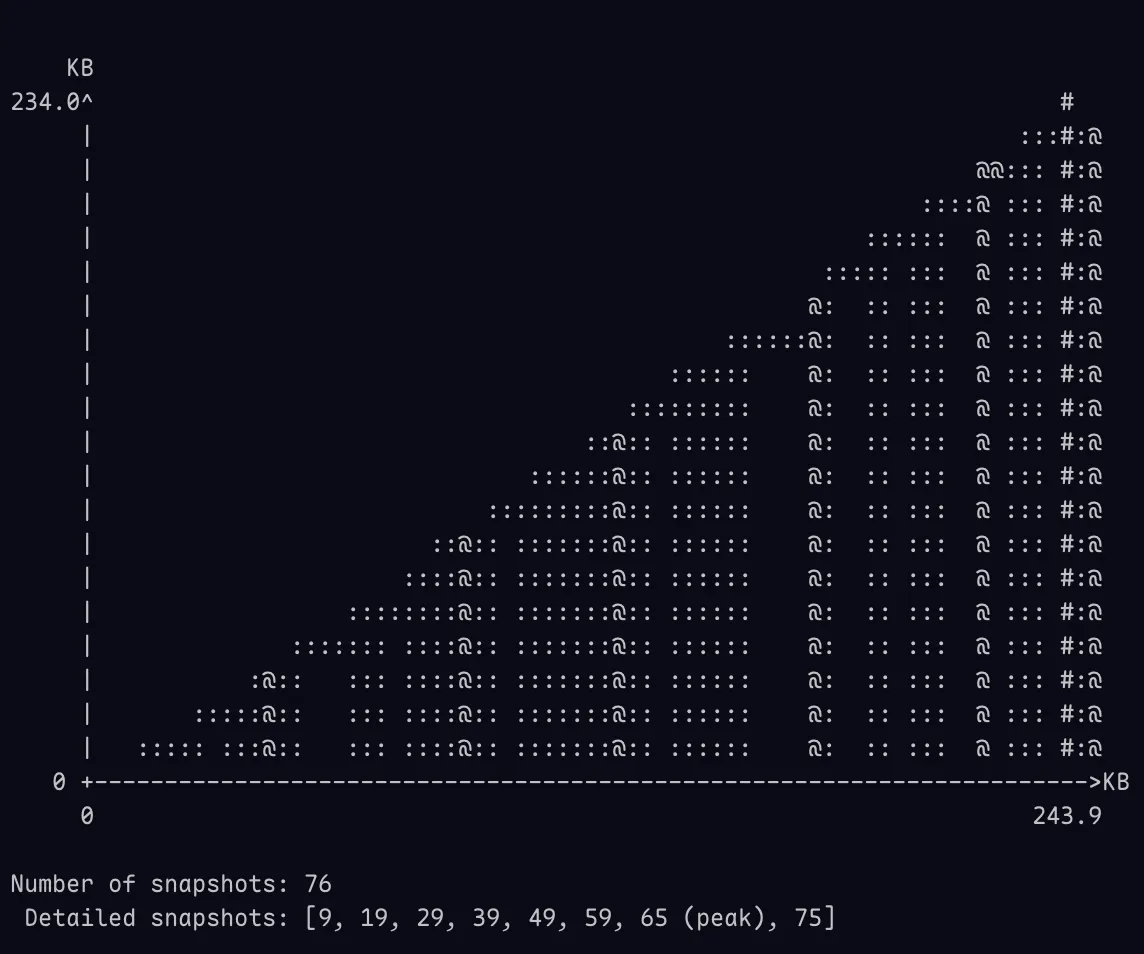

Massif (10%)

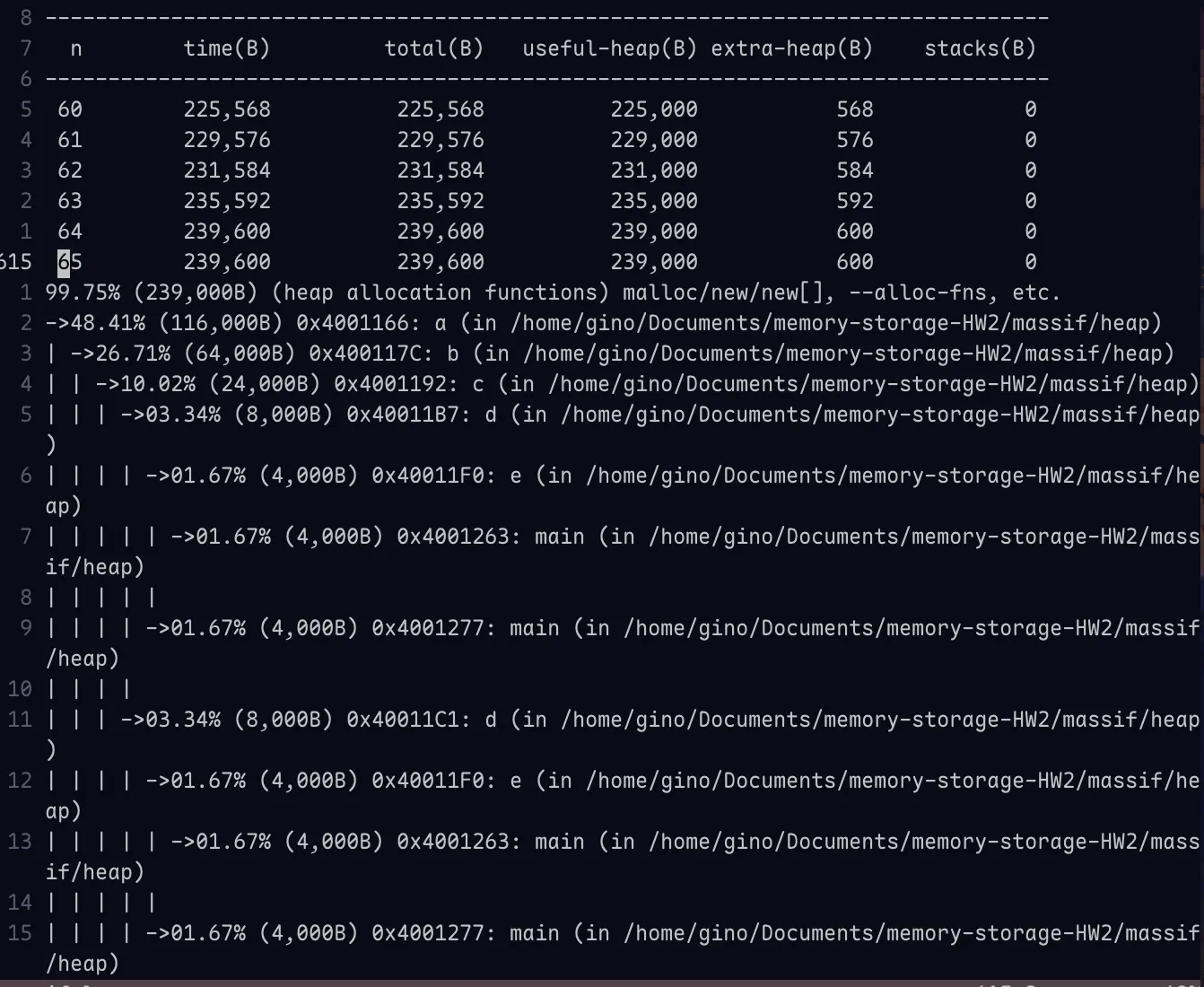

Number of allocated bytes at peak: $239,000$ bytes.

Number of used bytes at peak: $239,600$ bytes.

Callgrind (20%)

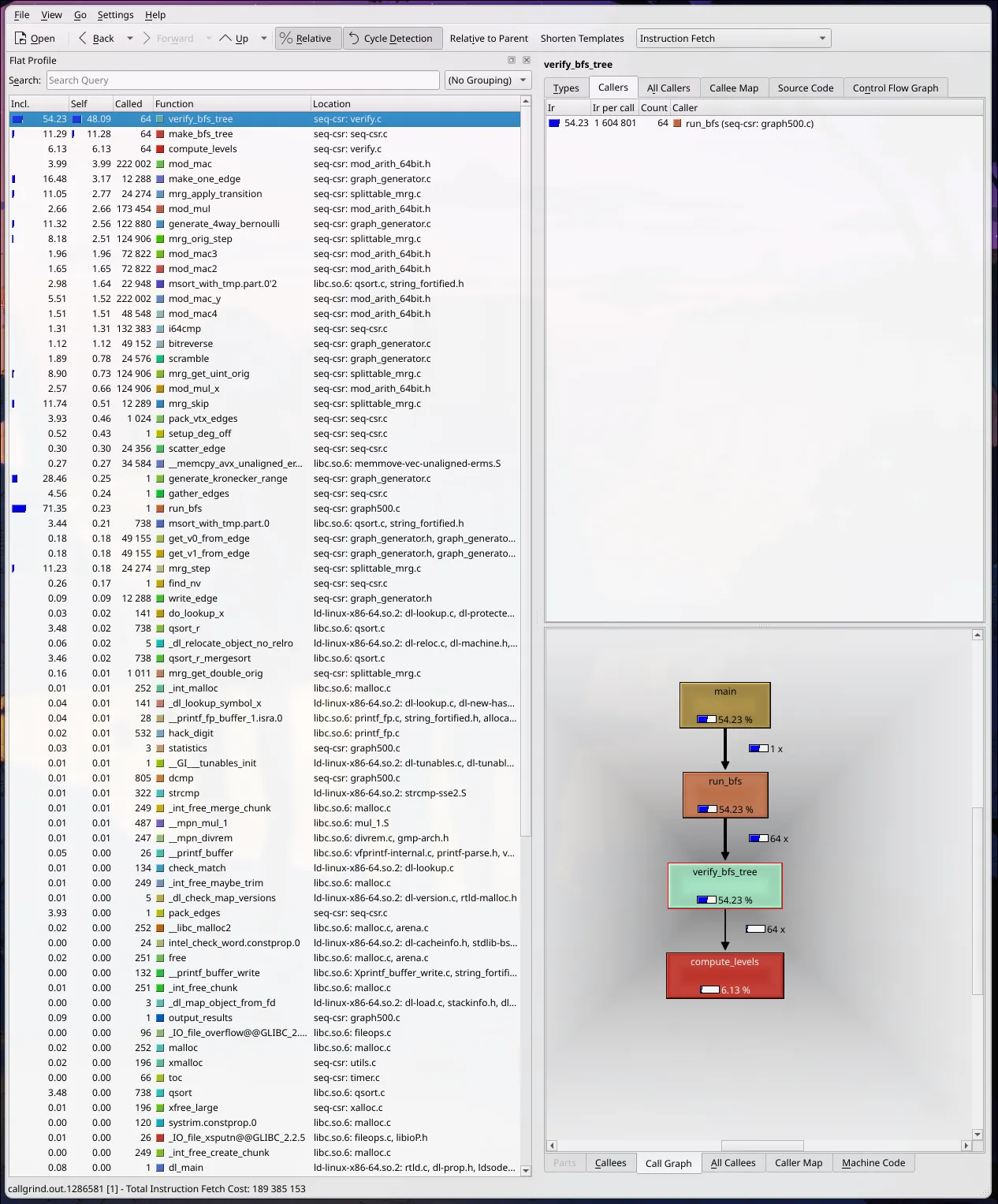

The most expensive function: verify_bfs_tree.

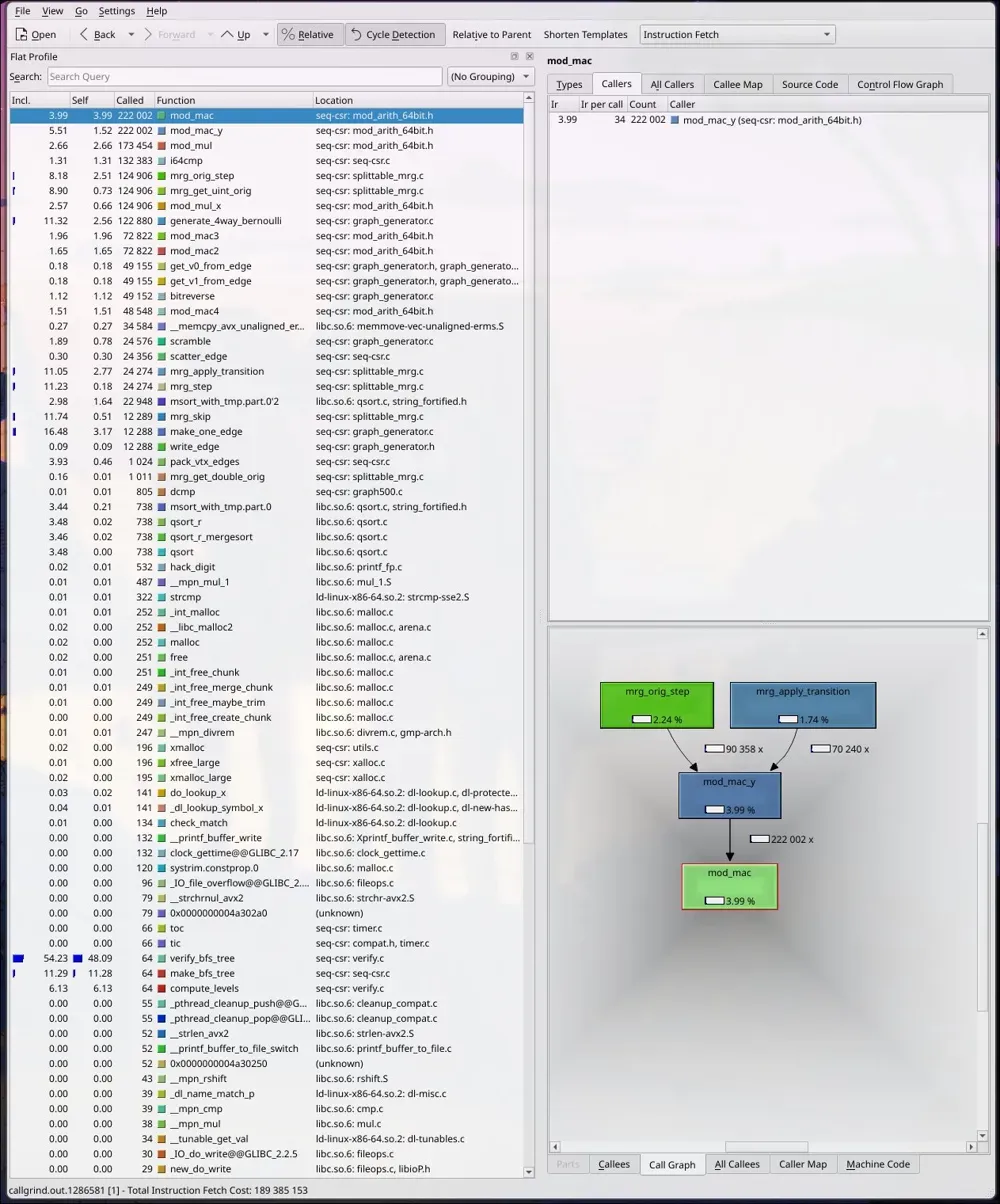

The most called function is mod_mac, its caller is mod_mac_y.

The call chain: mrg_orig_step / mrg_apply_transition -> mod_mac_y -> mod_mac

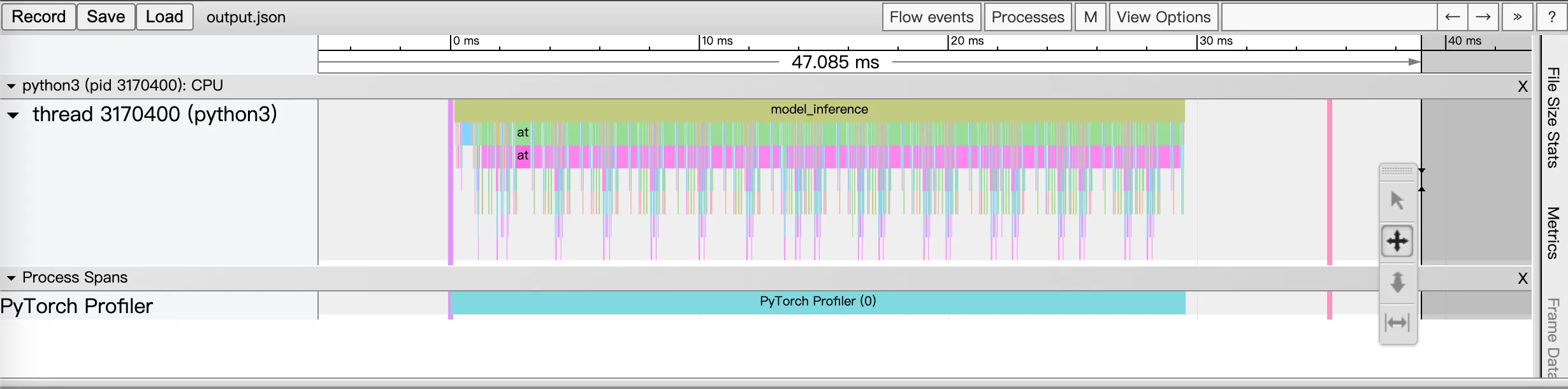

Pytorch Profiler (30%)

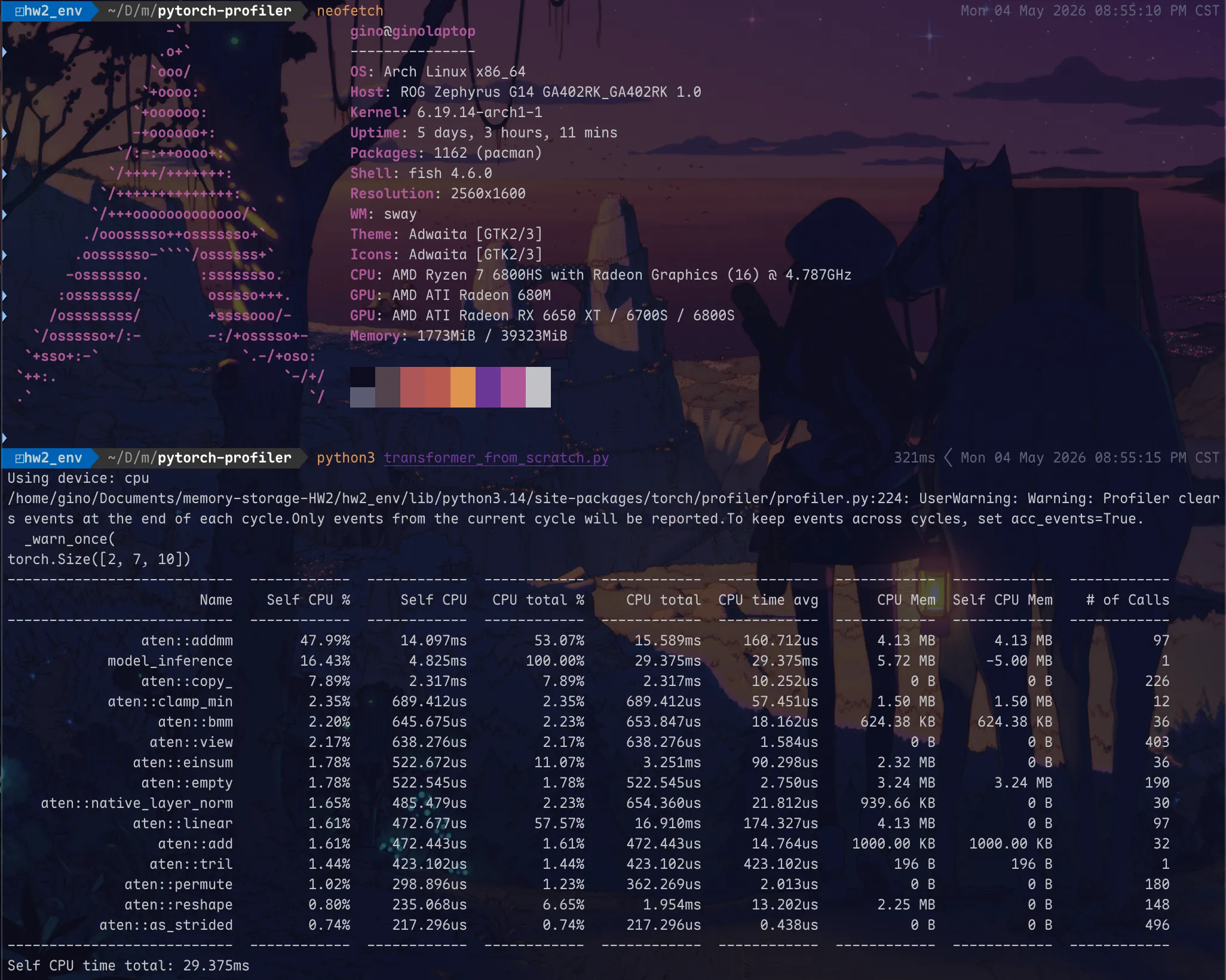

The top 3 functions (in terms of CPU time excluding callee functions):

The top 2 functions: aten::linear (green), aten::addmm (pink).
